Displaying the Structure Definitions list

To display the Structure Definitions list, which lists the structures currently defined in your repository, select Modify > Structures. For each structure, the following information is displayed:

STRUCTURE—The unique structure name.

DESCRIPTION—A descriptive identifier for the structure.

TYPE—The file type: DBL (DBL ISAM), ASC (ASCII), REL (relative), USE (user defined).

The total number of structures in your repository is displayed at the bottom of the list. (See figure 1.)

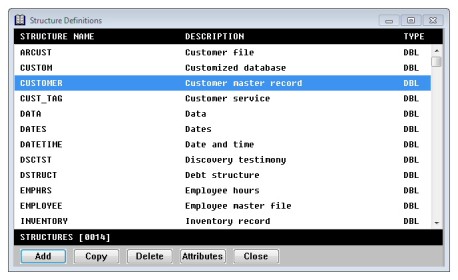

1. The Structure Definitions list.
